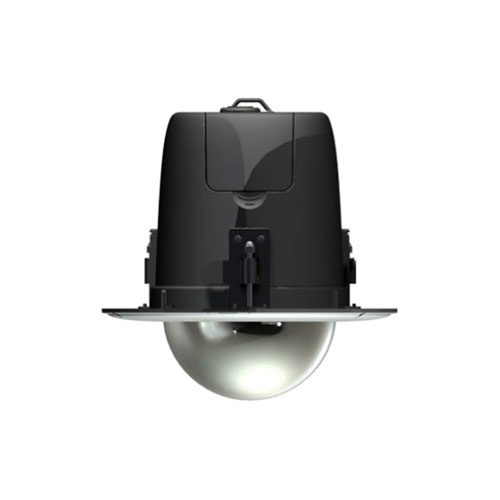

HIP-CZ20WC

2M X30 HD IP Indoor PTZ Camera

Dimension

Features

  • 2M X20 HD IP Indoor PTZ Camera
  • X240 Zoom Control(Optical X20 / Digital X12)
  • MIN. Illuminance : 0.025 Lux(B/W) @ DSS On
  • True Day & Night(ICR)
  • BLC / WDR / De-Fog / 3D Digital Noise Reduction
  • Image Stabilization
  • 8 Privacy Masks with Spherical Coordinates
  • Super Speed(500°/SEC.) with 360° Endless Pan Rotation
  • The Shortest Path with Vector Drive Technology
  • Micro Control(0.05°/SEC.) with Micro Stepping Control Technology
  • 209 Presets / 10 Swings / 4 Patterns / 8 Groups
  • 8 Scheduler Functions with RTC(Real Time Clock)
  • 1 CVBS Output
  • RS-485 with Pelco-D Protocol
  • 1 Sensor Input / 1 Sensor Output
  • Audio Input & Output
  • Memory Slot
  • Vandalproof
  • DC 12V
  • Optional High PoE(PoE+) 802.3aT

Camera Specifications

Camera Image Sensor 1/3” Panasonic CMOSSensor
Pixel 2,000KPixels
Zoom Optical X30 / Digital X12
Video Signal to Noise More than 50 dB
Focal Length F1.6 ~ 3.5, f=4.7 ~ 94.0mm
Angle of View Horizontal : 58.7°(Wide) ~ 3.2°(Tele)
MIN. Illuminance 0.5 Lux(Color) / 0.1 Lux(B/W) @DSSOff 0.125 Lux(Color) / 0.025 Lux(B/W) @DSSOn
Day & Night Auto / Day / Night(ICR)
Focus Auto / Manual / Semi-Auto
AEMode Auto / Iris/ Shutter / Manual
White Balance Auto / Indoor / Outdoor / Manual(Red, Blue Gain Adjustable)
BLC On / Off
WDR On / Off
De-Fog On / Off
Aperture Adjustable
Noise Reduction Auto / Off / 1 ~3 Level
Image Stabilization On / Off
Privacy Zone 8 Maskswith Spherical Coordinate
Pan/Tilt Range Pan : 360°(Endless) / Tilt : 90°
Pan/Tilt Speed Preset : 500° / SEC.
Manual : 0.05° ~360° / SEC. (Zoom Proportional)
Swing : 10° ~180° / SEC.
Preset 209 Presets (Label, Independent Camera Parameter Setting)
Pattern 4 Patterns [768 Commands(Approximate 5 Minutes) / 1 Pattern]
Swing 10 Swings
Group 8 Groups
(MAX. 40 Actionswith The Combination of Preset, Pattern and Swing)
Scheduler Function 8 Scheduler Functionswith RTC(Real Time Clock)
Other Functions Auto Flip, Auto Parking, Power-up Action and Others
Video Output CVBS, 1Vp-p
RTC(Real Time Clock) YES(RTCBattery Backup Time : Approximate 2 Weeks)
Communication RS-485
Protocol Pelco-D
OSD YES(English) with Password Protection
Sensor Input 1 Input, Photo-Coupler Type
Alarm Output 1 Output, Relay Output, MAX. Load DC24V/ 1.0Aor AC125V / 0.5A
Audio Input / Output Mono, Line In / Out
Network Interface Ethernet 10/100 Base-T(RJ-45)
Memory Slot Micro SD
Physical Dimension Dome : Ø148.5mm / Ø5.9″
253(Ø) x 259(H) [mm] / 10.0(Ø) x 10.2(H) [”]
Weight 2.3 kg/ 5.1 lb
Material Dome : Poly Carbonate / Housing : ABS+Poly Carbonate
Rated Power DC12V/ 1.8A
PoE Optional / High PoE(PoE+) 802.3aT
Operating TEMP. 0°C~40°C/ 32°F~104°F

*Specification & Design are subject to change without prior notice.

Features

  • High Image Quality with H.264
  • H.264 & M-JPEG Dual Streaming
  • Various Resolution Support
  • Various Compression Level Support
  • 30FPS @ 1920×1080
  • 2 Way Live Audio
  • Convenient Alarm Management
  • Dynamic IP Support
  • Various Network Protocol Support
  • SDK Support
  • ONVIF / PSIA Support

IP Part Specifications

Video Compression M-JPEG/ H.264 Dual Streaming
Audio Compression G.711 u-law, G.726 4 bitsADPCM
Resolution MAX. Full HD(1080p30), 1920×1080, 1280×720, 640×352, 320×176
Compression Level 6 Levels(Low Compression / Highest / High / Normal / Low / Lowest)
Live Casting Up to 30 FPS@1920×1080 Resolution
Audio Support 2 Way Live Audio
Transmission Control VBR, CBR(32Kbps~12Mbps)
Alarm Management [Trigger] Video Loss/ Video Recovered / Motion Detection / Sensor Input / Boot / Serial / Schedule and Others
[Service] Image BufferingService (8MbytesPre-Post Alarm Buffer), FTP/E-Mail
Notification Service
Dynamic IPSupport Dedicated Dynamic IPService using www.ipcctvdns.com
Security Password Protection for Live, PTZ, Alarm Output and Audio
Software (IE) Live-Cast and PTZControl through Web Browser with Audio
(MIN. PCRequirement : Windows XP, 2000, Vista / IE6.x or Higher / Pentium IV 1.6GHzor Higher)
CMS Support Free 16 Channels, Full Featured PCNVR
(MIN. PCRequirement : WindowsXP, 2000 / Pentium IV1.6GHzCPUor Higher / 256 Mbytes RAM or Higher / 64 MbytesVideo Memory or Higher)
Protocol HTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, FTP, PPPoE, SMTP(E- Mail), DHCP, NTP, uPNPand Others
ONVIF, PSIASupport
SDK Open HTTPAPI, ActiveXfor Live-Cast with Audio and PTZ
Installation & Maintenance Configuration : Installation Wizard, HTTP, Telnet and Console
Firmware Upgrade : HTTP, Telnet+FTP
Miscellaneous Serial Input Data Transmission with Video, Different Time Zone Support, User-
Wise Authentication Data and Time can be synchronized with an external NTP server, Live-Cast for up to 16 clients.

*Specification & Design are subject to change without prior notice.
