AHD 1.0 VEHICLE CAMER

HHV-RV1

Mini Vandal Dome IR for Indoor , Outdoor of Vehicle (AHD 720p, 1.3MP, 12 IR LED)

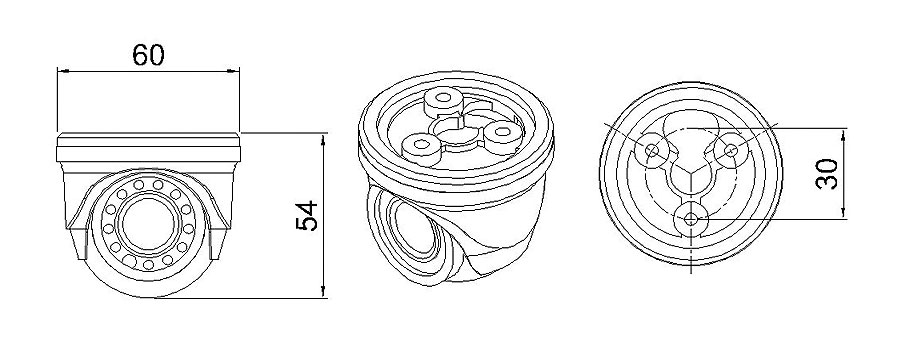

Dimension

Features

  • 1/3.2”, 1.3MP Sony STARVIS RGBW CMOS
  • AHD : 720P (30fps), HD Resolution
  • Mechanical IR Cut Filter Free, Day & Night
  • 3.6mm Fixed Lens, 12 IR LED (850nm)
  • DOL WDR + ATR, Digital Overlap WDR
  • Flip : H-Flip, V-Flip, HV Flip
  • Extremely Reliable Power Input Range(DC9V ~ DC28V)
  • Aluminum Die-casting Body, Anodizing Coating
  • For Outdoor Side View (Left, Right)
  • For Indoor Ceiling Mount
  • IP 67, IK10 for Outdoor / Indoor

Camera Specifications

Image Sensor 1/3.2”, 1.3Mega Sony STARVIS RGBW CMOS
Total Pixels 1305(H) x 985(V) Approx. 1.29M Pixels
Effective Pixels 1297(H) x 977(V) Approx. 1.27M Pixels
Minimum Illumination(F1.2) Color : 0.005 Lux (AGC ON)
B/W   : 0.001 Lux (AGC ON)
Shutter Speed 1/50(1/60) ~ 1/50000 sec
Video Output Mode AHD 720p (HD Resolution), 30fps
Lens 3.6mm, Mega Pixel Lens
IR LED 12 IR LED (850nm)
Iris Control Manual
S/N Ratio 72dB
ATW Range 1800 ~ 10500K
White Balance ATW / Push / User1 / User2 / Manual / Push Lock
AGC Min / 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 / Max
Back Light Off / BLC / HLC
WDR / ATR Off /WDR (Low/Middle/High)/ART(Low/Middle/High)
2 DNR Off / Y-C / Y / C
Day & Night Auto / Manual
IR LED Control Off / Auto / Fix
Privacy Masking Off / On (16 Zone)
Defog Off / Auto
Flip Off / H-Flip / V-Flip / HV-Flip
Pict Adjust Brightness/Contrast/Sharpness/Hue/Color Gain
Power Input DC 9V ~ DC 28V
Power Consumption Normal : 80mA (IR LED On : Max. 180mA)
Dimension Ø 60 (W) x 54 (H) mm
7. Vehicle Surveillance System AHD 1.0 Vehicle

HHV-RV1
