NETWORK IP CAMERA
HIP-HV2245

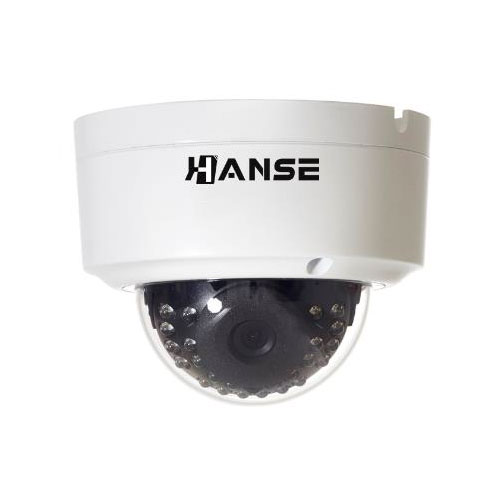

2MP NETWORK IP IR VANDAL DOME CAMERA

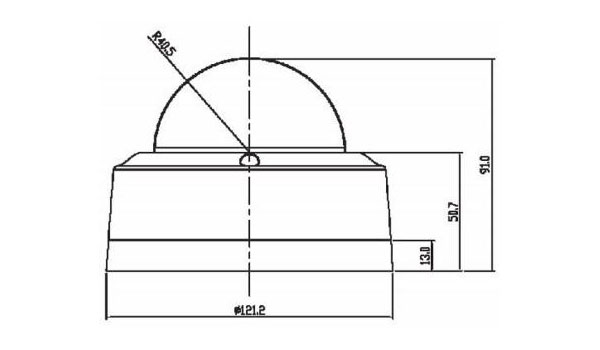

Dimension
Features
- Sony STARVIS 2.07MP Image Sensor
- Ultra low light color camera(0.01lux/F1.2)
- Triple codec(H.265, H.264, MJPEG)
- Triple Stream
- Max 30fps @ all resolution
- Support Onvif/PoE/External Video
- DOL True WDR
- IR LED : 24 units(20m)
- True Day & Night
- Fixed Lens 3.6mm
- 3-Axis Gimbal Bracket
- IP66 Weatherproof
Camera Specifications
| IMAGE | Image Sensor | Sony Starvis 2.07MP(1/2.8) Image Sensor |
| Scan System | Progressive Scan | |
| Total Pixels | 1945(H) x 1109(V), 2.16 Mega Pixels | |
| Effective Pixels | 1945(H) x 1097(V), 2.13 Mega Pixels | |
| Function | Day & Night | Auto / Day(Color) / Night(BW), ICR Control |
| Privacy Area | On / Off (16 Programmable Zones) | |
| Motion Detection | 48 Zone (On/Off, 1~5Step), On / Off | |
| W D R | WDR, On / Off | |
| DNR | 2DNR, 3DNR | |
| Defog | Detect foggy, On / Off | |
| Elec. Shutter | Auto(1/30~1/30000), Suppress Rolling, Manual | |
| White Balance | Auto / Push / Indoor / Outdoor / Fluorescent | |
| Image Mirror | Normal/Mirror(H)/Flip(V)Both(HV) | |
| Lens | Focal Length | Fixed lens 3.6mm |
| IR LEDs | IR LEDs | 24 units |
| Electrical | Power Supply | DC12[V] ±10% / Max 750mA |
| Environ-mental | Operating Temp. | -10℃~ +50℃ |
| Preservation Temp. | -20℃~ +60℃ | |
| Humidity | 0% ~ 80% | |
| Mecha-nical | Weight. | Approx. 670g |
*Specification and Design are subject to change without notice
Network Specifications
| System | OS | Embedded Linux |
| Network | Interface | RJ45 10/100 Base-T PoE |
| Protocol | TCP/IP,UDP/IP,RTP,RTSP,RTCP,NTP,HTTP,DHCP,FTP,SMTP,DNS,DDNS | |
| Onvif | ver2.4.2 | |
| DDNS | Iplinker.net | |
| Simultaneous Access | Max. 10 user | |
| Video | Compress Format | H.265/H.264/MPEG4 |
| Resolution | 1920×1080/1280×720/640×360/320×180 | |
| Frame Rate | Max. 30fps @all resolution | |
| Streaming | Triple Stream (Stream1,2,3)RTP/RTSP, UnicastRTP, Multicast RTP | |
| Audio | Compress Format | G.711 u-law |
| Streaming | Two way | |
| Event | Sensor In | 1(NC/NO) |
| Alarm Out | 1(Digital Output, Open Collector) | |
| Web Browser | OS | Windows 7, 8, 10 |
| Manager | IE(over 11), Firefox, Safari, Opera | |
| Viewer | IE only (Active-X) |
