NETWORK IP CAMERA
HIP-AB55
5MP NETWORK IP BOX CAMERA

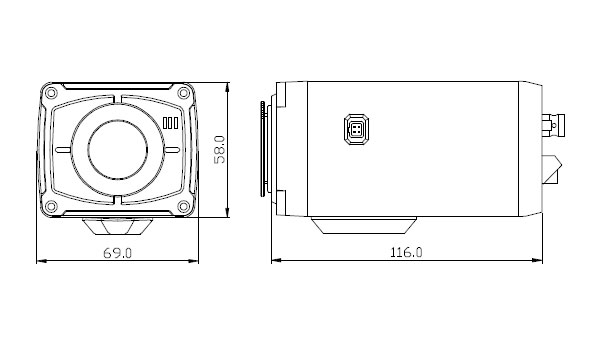

Dimension
Features
- Sony STARVIS 5.69MP Image Sensor
- Ultra low light color camera(0.01lux/F1.2)
- Triple codec(H.265, H.264, MJPEG)
- Triple Stream
- Max 30fps @ all resolution
- Support Onvif/PoE/External Video
- DOL True WDR
- True Day & Night
Camera Specifications
| IMAGE | Image Sensor | Sony Starvis 5.69MP(1/2,8”) Image Sensor |
| Scan System | Progressive Scan | |
| Total Pixels | 2704(H) x 2104(V), 5.68 Mega Pixels | |
| Effective Pixels | 2616(H) x 1964(V),58.13 Mega Pixels | |
| Function | Day & Night | Auto / Day(Color) / Night(BW) |
| Privacy Area | On / Off (8 Programmable Zones) | |
| Motion Detection | 432 Zone (On / Off, 1~5step) | |
| W D R | DOL True WDR | |
| 3D DNR | 2DNR, 3DNR | |
| S/N Ratio | More 52dB | |
| BLC | HLC, BLC | |
| Digital Zoom | 16x | |
| Degof/LDS/Mirror | On / Off | |
| White Balance | Auto/Push/Indoor/Outdoor/Fluorescent/User | |
| Lens | Focal Length | N/A |
| IR LEDs | IR LEDs | N/A |
| Electrical | Power Supply | DC12[V] ±10% / Max 750mA |
| Environ-mental | Operating Temp. | -10℃~ +50℃ |
| Preservation Temp. | -20℃~ +60℃ | |
| Humidity | 0% ~ 80% | |
| Mecha-nical | Weight. | Approx. 360g |
*Specification and Design are subject to change without notice
Network Specifications
| System | OS | Embedded Linux |
| Network | Interface | RJ45 10/100 Base-T |
| Protocol | TCP/IP,UDP/IP,RTP,RTSP,RTCP,NTP,HTTP,DHCP,FTP,SMTP,DNS,DDNS | |
| Onvif | ver17.06 | |
| DDNS | Iplinker.net | |
| Simultaneous Access | Max. 10 user | |
| Video | Compress Format | H.265, H.264, MJPEG |
| Resolution | 2560×1920/2560×1440/2048×1536/1600×1200/1920×1080/1280×1024/1280×960/ 640×480/640×360/320×240/320×180 |
|
| Frame Rate | Max. 30fps @all resolution | |
| Streaming | Triple Stream (Stream1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP | |
| Audio | Compress Format | G.711 u-law |
| Streaming | Two way | |
| Event | Sensor In | 1(NC/NO) |
| Alarm Out | 1(Digital Output, Open Collector) | |
| Web Browser | OS | Windows 7, 8, 10 |
| Manager | IE(over 11), Firefox, Safari, Opera | |
| Viewer | IE only (Active-X) |
